Safety Needles

Safety Needles

Safety needle helps to ensure that the hand of the user is safe behind the needle and can be used with one hand. The grip plate in the safety needle makes the injection much easier. By using types of safety needles such as safety seal lancets, needle-stick injuries and infections can be minimized.

Introduction Of Safety Needles

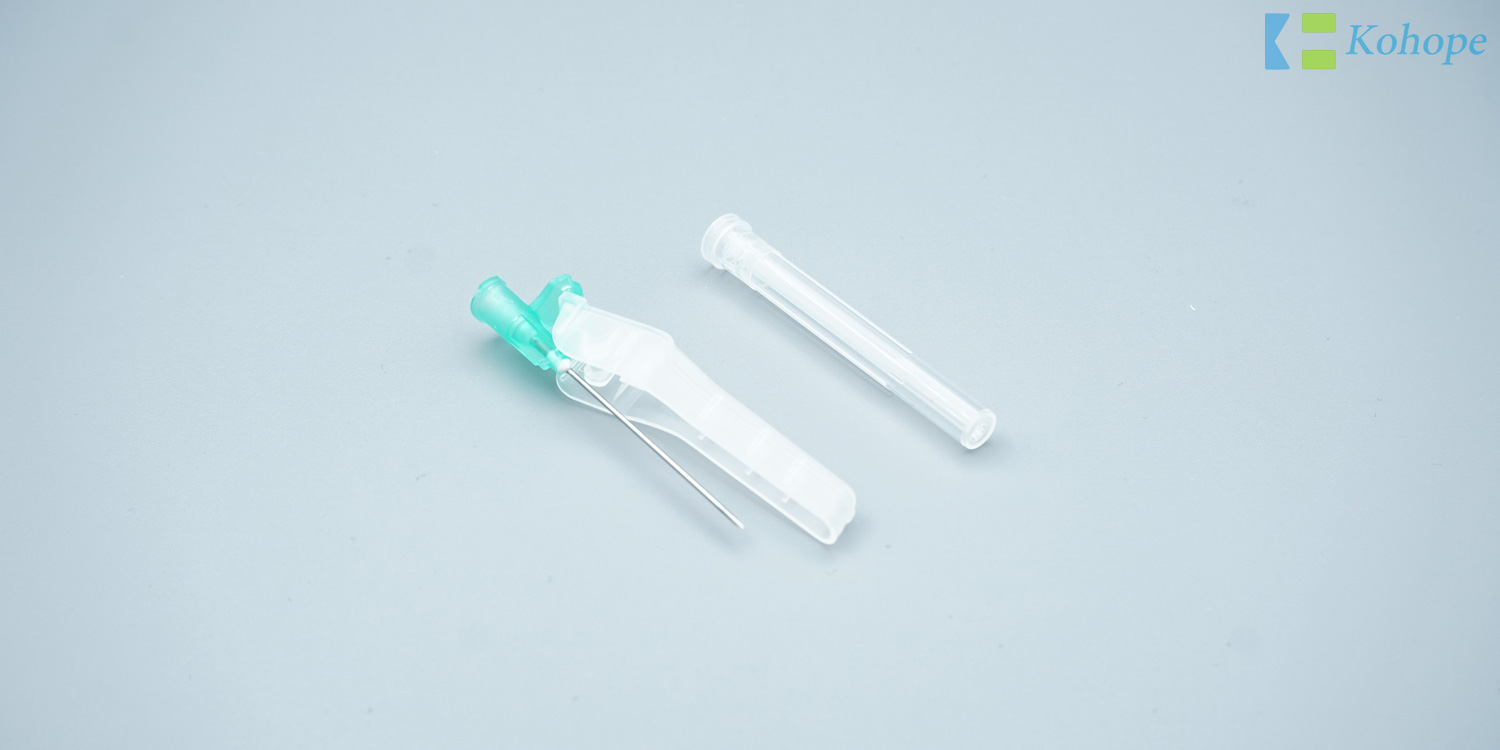

Our safety needles are specially designed with a safety protection arm that will cover and lock the needle after use so as to reduce the risk of accidental needle sticks.

The safety needles for injections are used together with syringes or infusion(blood) device, can be used for blood sampling, intravenous injection, subcutaneous injection, intramuscular injection, joint and soft tissue injection, fine needle aspiration, and intravitreal injection, avoid cross-infection effectively. There are various types of safety needles, such as insulin safety needles, retractable safety needles, safety butterfly needles, safety huber needles and safety hypodermic needles.

Specification Of Safety Needles

OD(mm)GAUGECOLOR-CODE1/31/25/83/411 1/41 1/22RWTWLong bevelShort bevel
0.2531G       white

0.3030G  light yellow

0.3329G        red

0.3628G  blue green


0.4027G        grey

0.4526G       brown

0.5025G      orange

0.5524G       purple


0.6023G         blue


0.7022G       black


0.8021G       green

0.9020G      yellow


1.1019G       cream


1.2018G        pink


1.6016G      white


1.8015G    blue grey


2.1014G  pale green


Remark: normal size in the above table, we can also make a special size as clients' request.

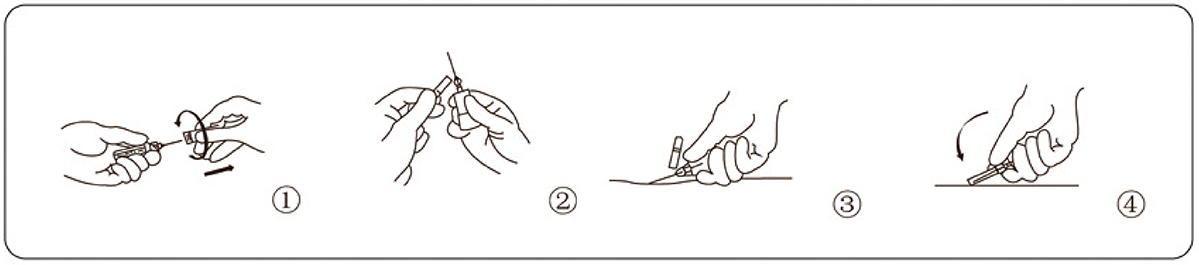

Instruction Of Use Of Safety Needles

  • After the injection use a one-handed technique to activate the needle's safety mechanism using any preferred method and activate the needle's safety mechanism by pressing the safety shield against a suitable hard and flat surface until you hear an audible click with your thumb or forefinger on the textured finger plate;

  • Push the safety shield over the needle until a slight snap is felt and an audible click is heard;

  • Perform activation of the safety feature away from yourself and others.

Instruction Of Use Of Safety Needles

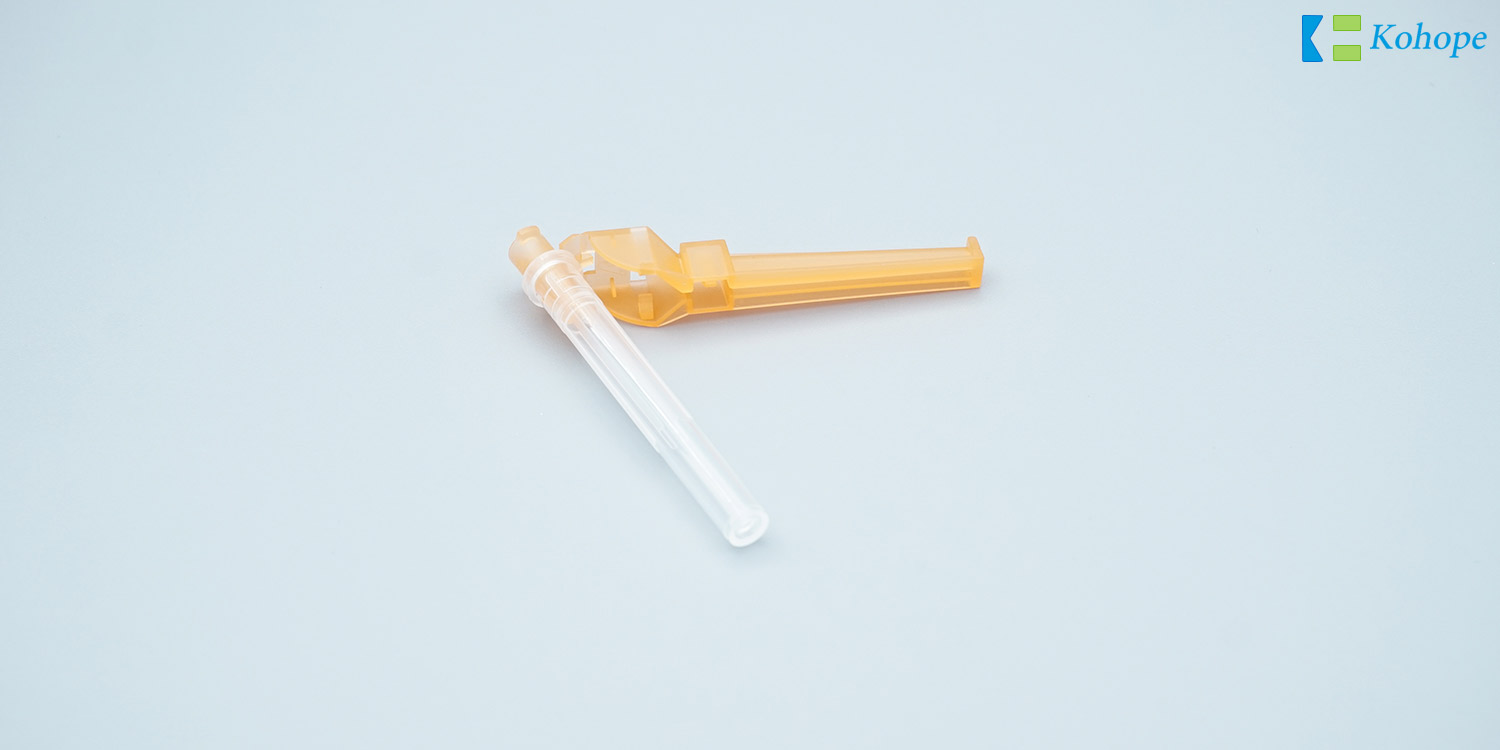

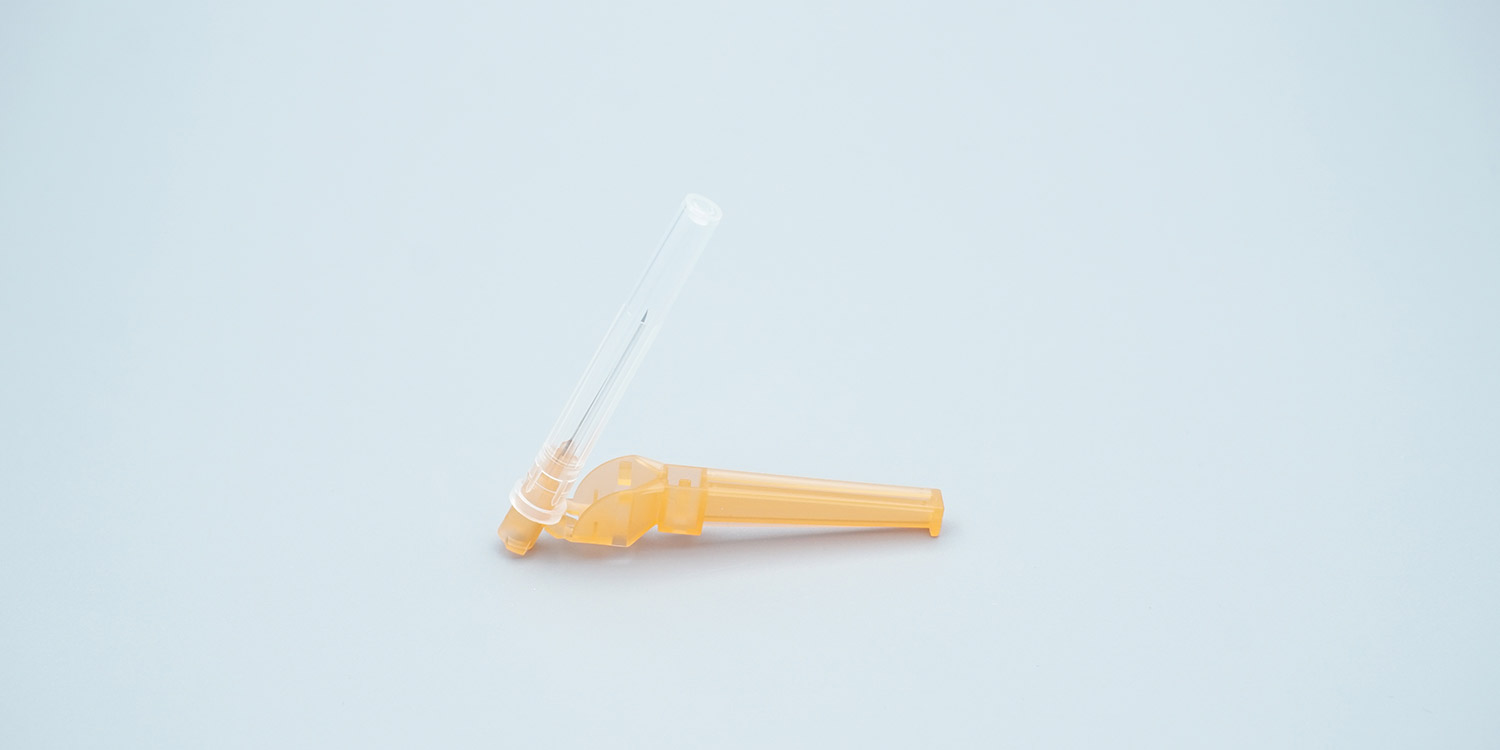

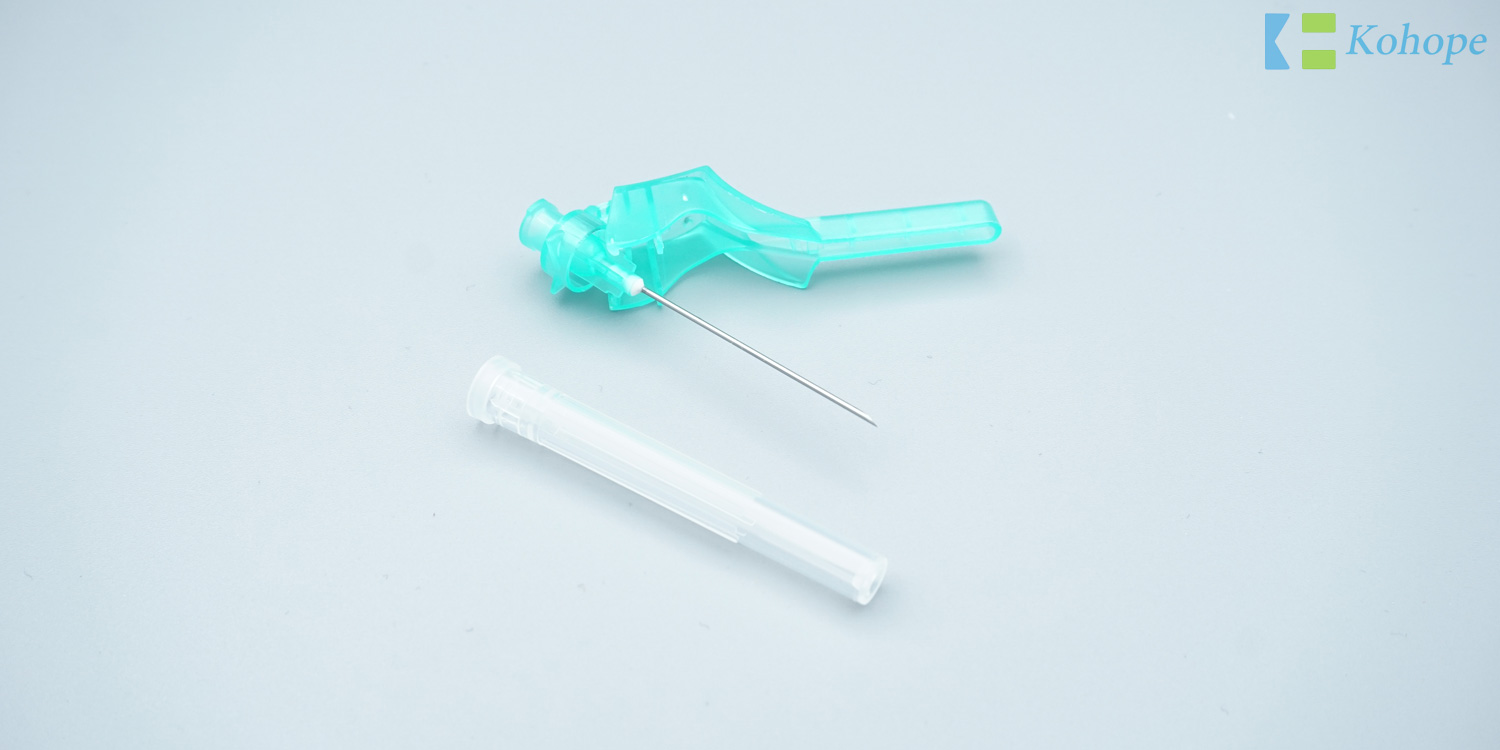

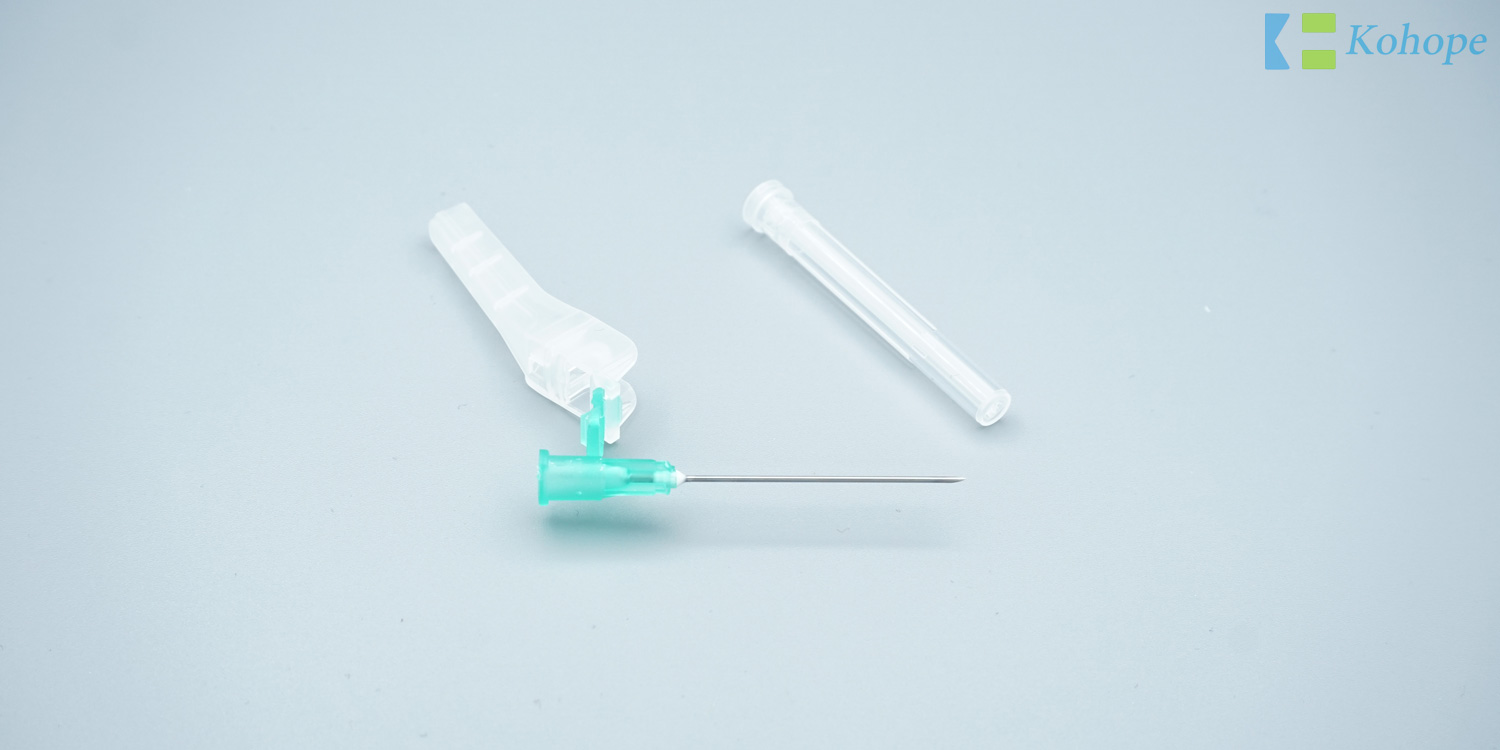

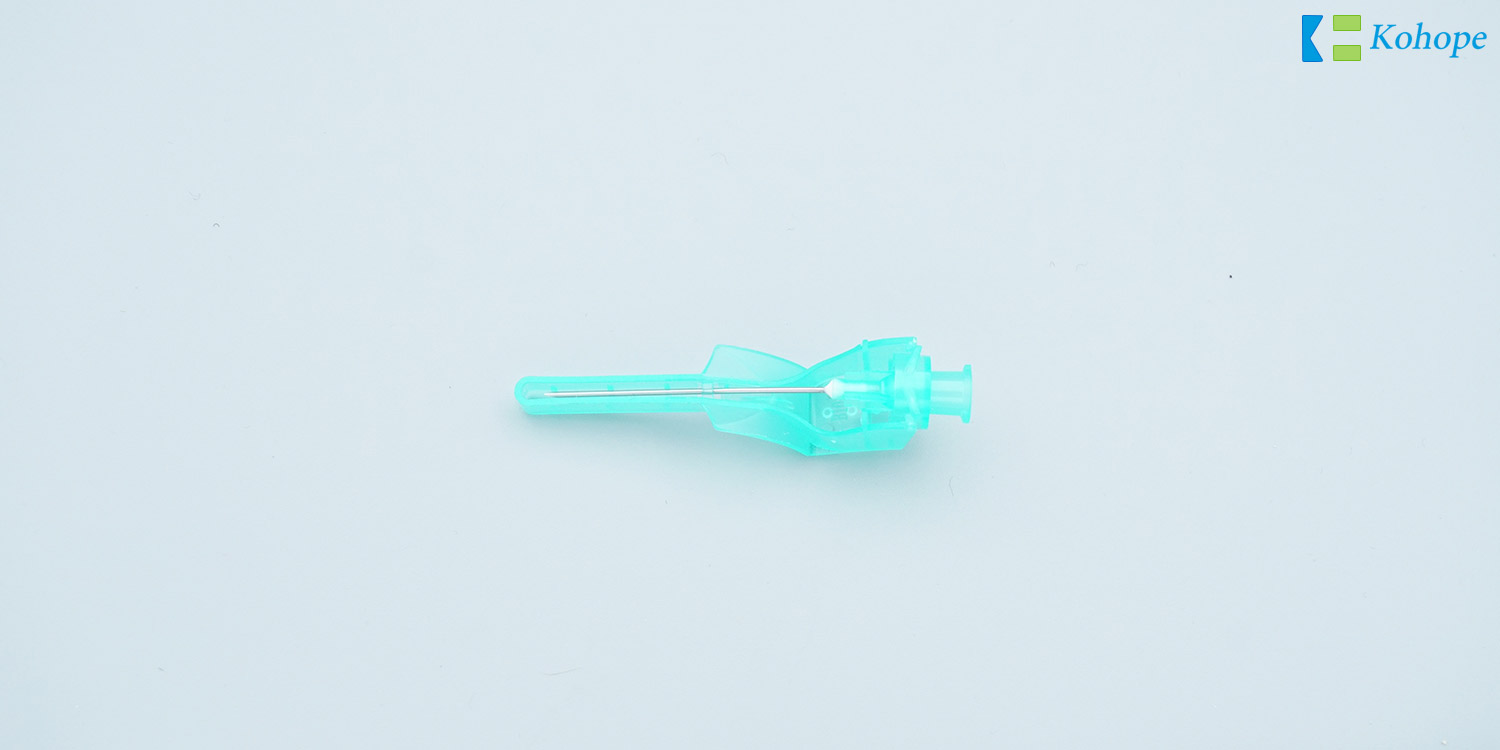

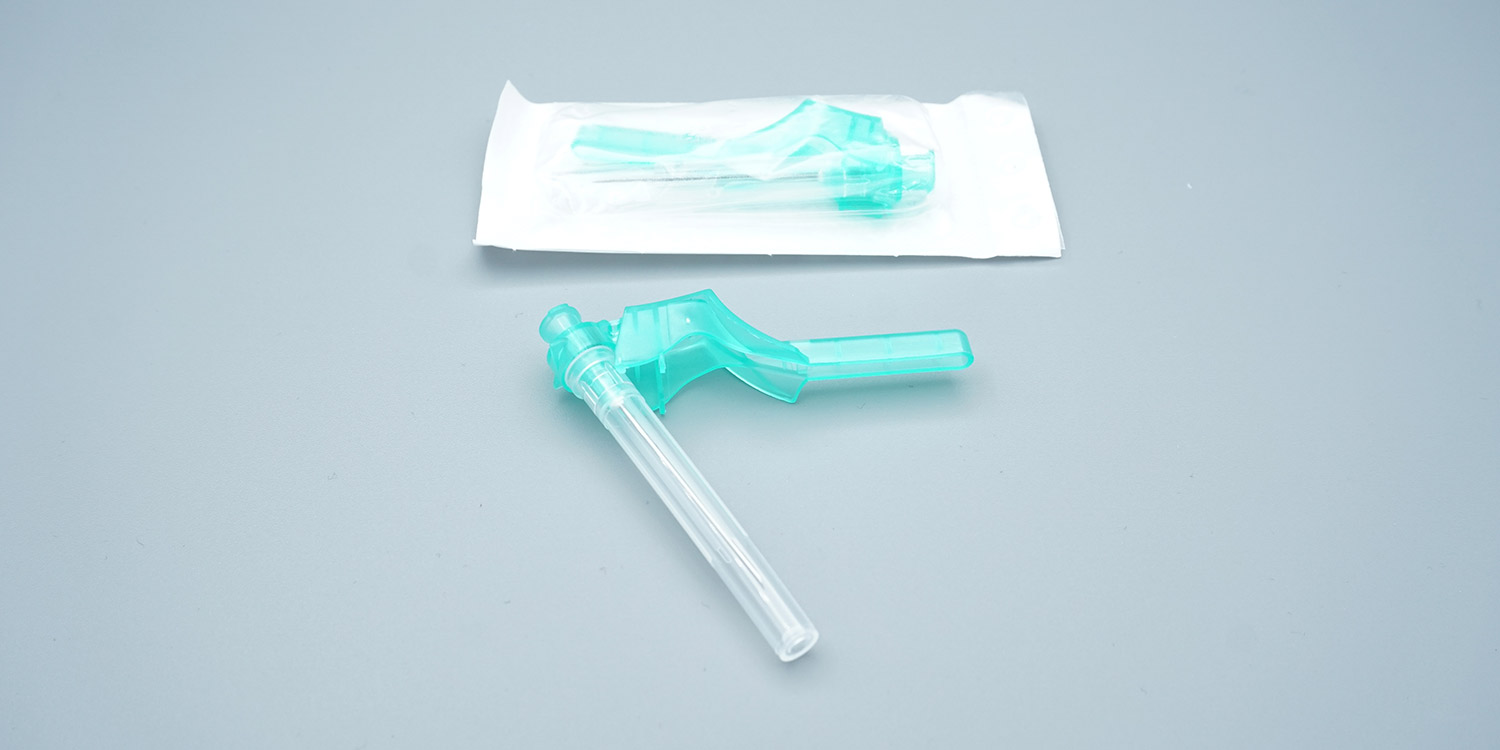

Details Of Safety Needles

Main material: PP, SUS304 stainless Steel Cannula, Silicone oil.


  • The design of a safe protector arm/cap can shield the cannula after use, prevent needlepoint from stabbing nurses, patients, or other people, which can effectively reduce infection.

  • One-piece design ensures that the safety shield and needle remain securely engaged during the application process.

  • The hinge allows for easy adjustment of the safety shield according to the application.

Other Notes Of Safety Needles

  • Product Conformance:

    Conform to ISO 7864,ISO23908

    In compliance with European Medical Device Directive 93/42/EEC(CE Class: lla)

  • Quality Assurance:

    Manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
