AV Fistula Needles

AV Fistula Needles

Kohope is a professional av fistula needle manufacturer and offers many types of av fistula needles at affordable price, including fistula needles for dialysis.

What is a Fistula Needle?

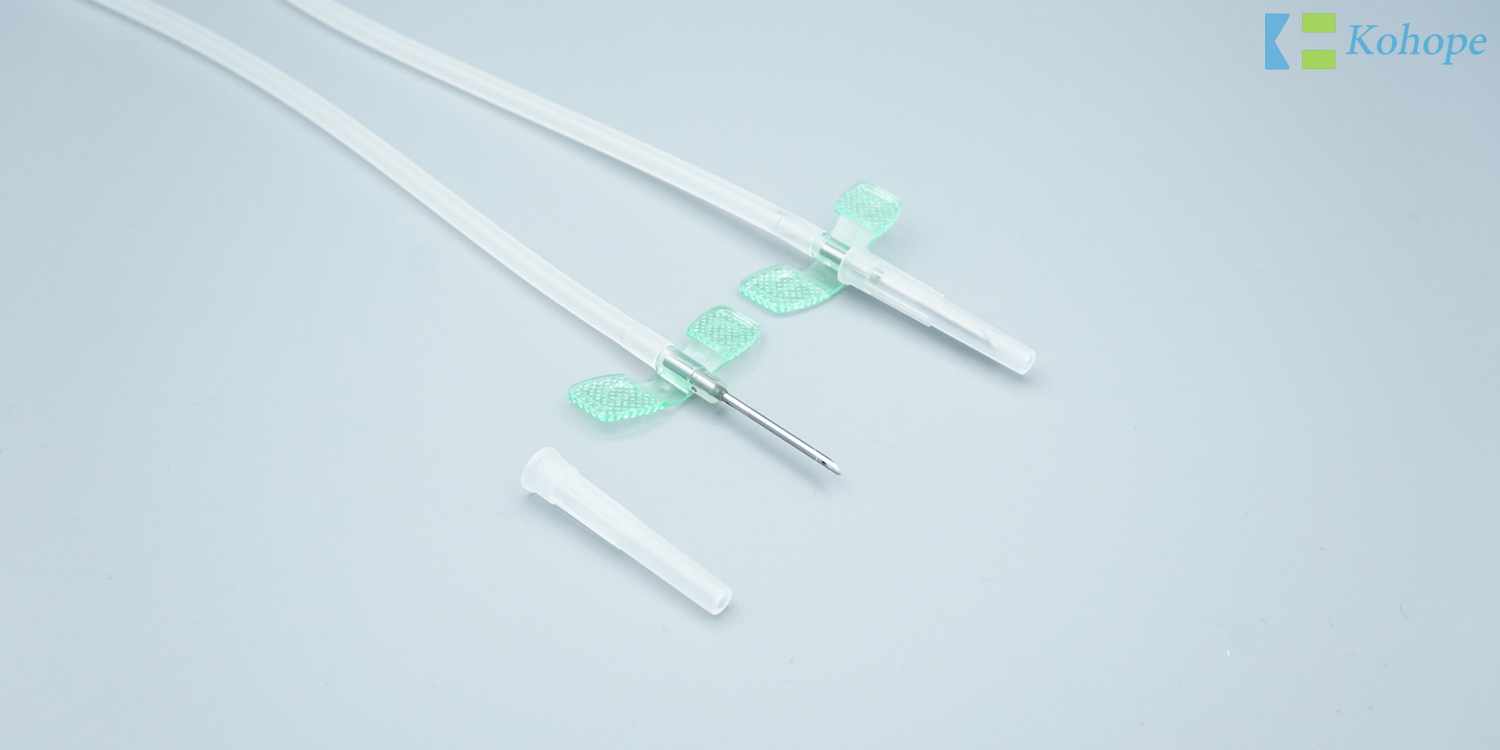

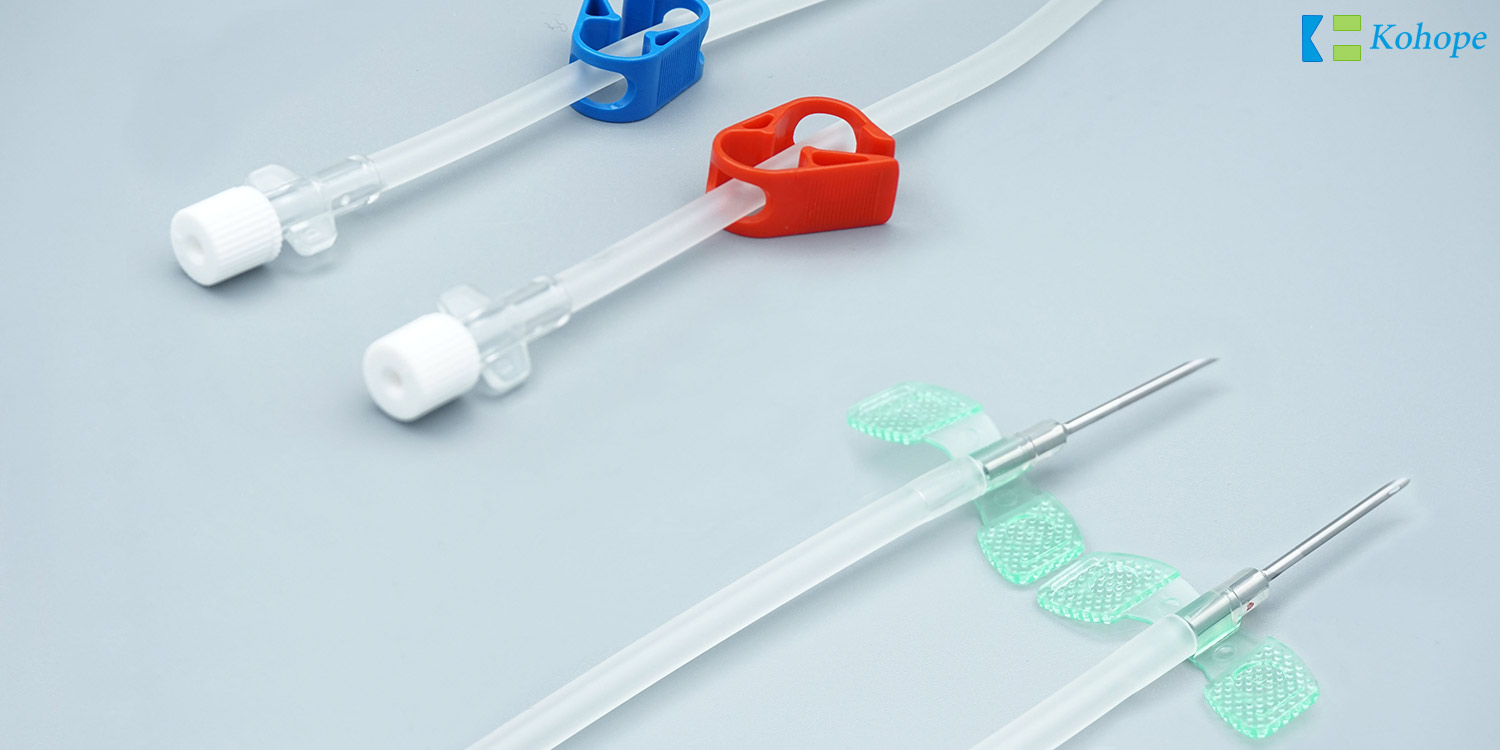

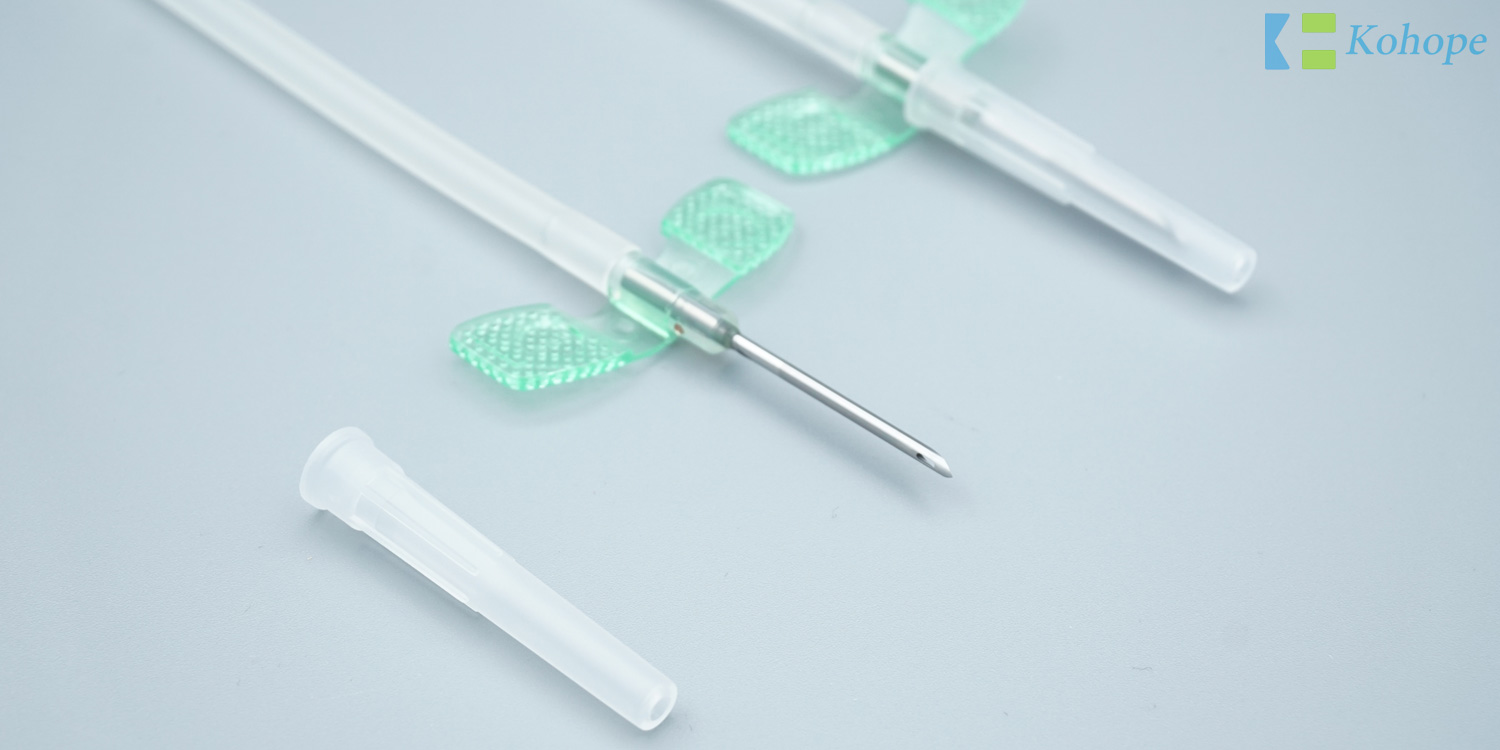

The AV Fistula Needles are assembled by a protective cap, needle tube,double-wing plate, lock fitting, tubing, inner conical interface, lock cover. The AV Fistula Needles are intended to be used with blood composition collecting machines (for example centrifugalization style and rotating membrane style etc.) or blood dialysis machine for venous or arterial blood collecting work, then administer blood composition return to the human body. With an AV fistula, blood flows from the artery directly into the vein, increasing the blood pressure and amount of blood flow through the vein.  The increased flow and pressure cause the veins to enlarge. The enlarged veins will be capable of delivering the amount of blood flow necessary to provide an adequate hemodialysis treatment.

AV Fistula Needle Sizes and Other Specification


Fixed Tyoe1.4017G      orange
1.6016G       green
1.8015G       beige
Rotating Tyoe1.4017G      orange
1.6016G       green
1.8015G       beige
Safety Type1.4017G      orange
1.6016G       green
1.8015G       beige
Remark: normal AV fistula needle size, like AV fistula needle 16g, in the above table, we can also make a special size as clients' request.

Details of AV Fistula Needle Set

Main material: PP, PVC, PC, SUS304 stainless Steel Cannula, Silicone oil.


  • Different types: Fixed, rotating, safety.

  • Non-latex

  • Ultra-sharp for easier penetration

  • Silicone coated for smoother, more comfortable penetration

  • Easy removal of Luer cap

  • Double entry points on the needle for quick collection

  • Ultra-thin wall needles permit maximum blood flow

A.v Fistula needles with a safety device can shield the cannula after use, prevent harm to the users, which can reduce infection effectively.

Other Notes of Safety Fistula Needles

  • Product Conformance:

In compliance with European Medical Device Directive 93/42/EEC(CE Class: lla)

  • Quality Assurance:

The manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
